Components

Django core component

The Django component of the Deed Machine can generally be thought of as the conductor or hub that turns raw processing results into structured data, facilitates the import and export to the Zooniverse crowdsourcing platform, allows for manual GUI editing, and manages final data exports.

See Django model structure

Standalone deed uploader

Often deed images are stored on a local machine or network drive, and it’s not feasible or efficient to move them. This standalone uploader is designed to avoid the user having to do a full install on this computer.

mp-upload-deed-images-standalone

S3 bucket folders

Results of initial processing are stored in an S3 bucket with a specific folder structure

S3 folder structure
Folder name	Description
/raw	Original images, may be in multiple image formats
/ocr/txt	A text blob of each line of words extracted from Textract OCR JSON
/ocr/json	Original OCR JSON object created by Textract
/ocr/stats	JSON file with basic info about document, including handwriting percentage and web UUID in filename, which is needed to identify corresponding web image
/ocr/hits	NDJSON object containing info about what terms found and on what line number. Only exists if a term is found. Basic literal search (no fuzziness)
/ocr/hits_fuzzy	NDJSON object containing info about what terms found and on what line number. Only exists if a term is found. Fuzzy search with variable fuzziness allowed by term
/web	Web-optimized JPEG with watermark, uses UUID instead of s3_lookup to prevent scraping, since these files are publicly readable
/web_highlighted	Web-optimized JPEG with watermark, uses UUID instead of s3_lookup to prevent scraping, since these files are publicly readable

DeedPageProcessor step function components

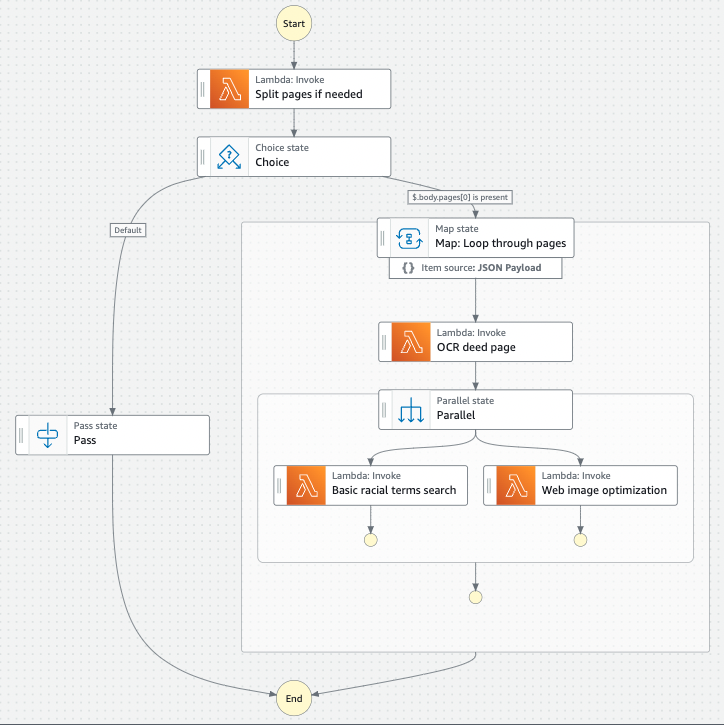

A diagram showing the logic of the Deed Machine step function as of July 24, 2024. After Start, a lambda invoke splits pages if needed. The output enters a choice state. If no pages ready for processing are returned, the step function ends. If pages ready for processing are returned, then loop through each page. For each page, lambda invoke OCR's the page. Output from the OCR step is directed to a parallel state that invokes lambdas for a basic racial terms search and Web image optimization.

The individual lambda functions that make up the OCR, term search and web image optimization processes are in separate repositories:

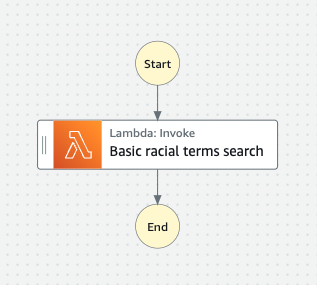

A diagram showing the logic of the Deed Machine FAKE OCR step function as of July 25, 2024. After Start, a lambda invoke performs a basic racial terms search.

TermSearchRefresh step function components

This step function is triggered by the Django management command trigger_term_search_refresh. Lambda function for term search is stored in a separate repository and is identical to above:

DeedPageProcessorFAKEOCR step function components

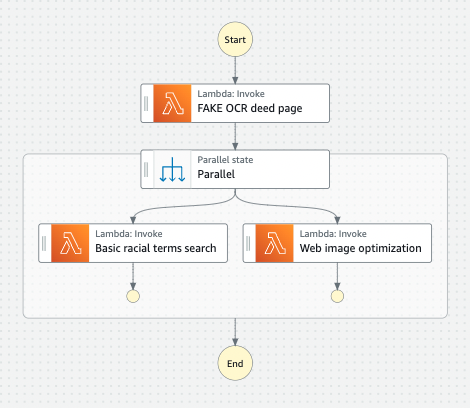

A diagram showing the logic of the Deed Machine FAKE OCR step function as of July 25, 2024. After Start, a lambda invoke simulates a re-run of OCR. Output is directed to a parallel state that invokes lambdas for a basic racial terms search and Web image optimization.

This step function is triggered by the Django management command trigger_lambda_refresh. The individual lambda functions that make up the OCR simulation, term search and web image optimization processes are in separate repositories:
